| Status | Discontinued |
| Logic IC Type | J-K FLIP-FLOP |
| Sub Category | FF/Latches |
| Family | TTL/H/L |
| fmax-Min | 15 MHz |
| JESD-30 Code | R-PDIP-T16 |
| Number of Bits | 2 |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70 Cel |
| Output Polarity | COMPLEMENTARY |
| Package Body Material | PLASTIC/EPOXY |

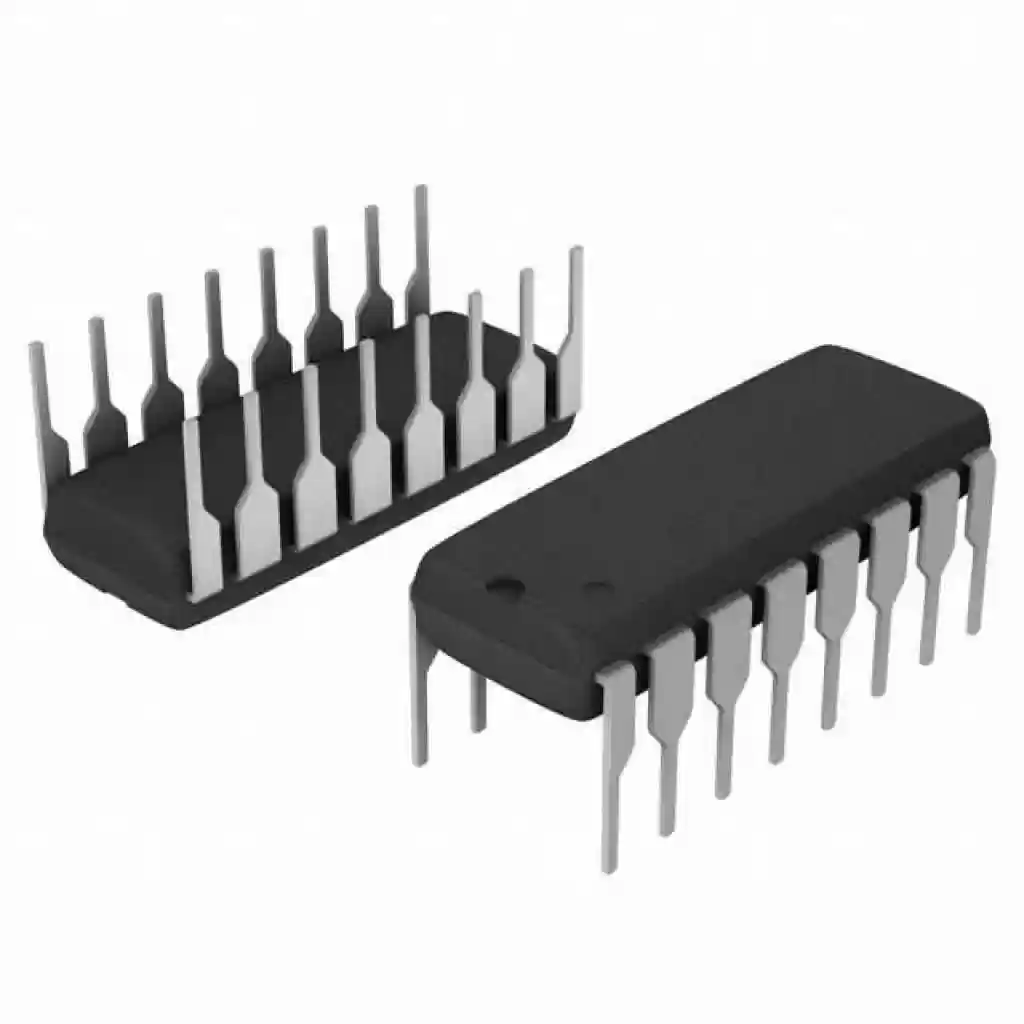

| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supplies (V) | 5 |
| Propagation Delay (tpd) | 40 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Trigger Type | POSITIVE EDGE |
| Length | 19.3 mm |
| Width | 7.62 mm |
| Additional Feature | MASTER SLAVE OPERATION |
